Gorden Rotor Bars in the United States of America


Case IH  Operators Look What's For

SPECIALTY ROTORS

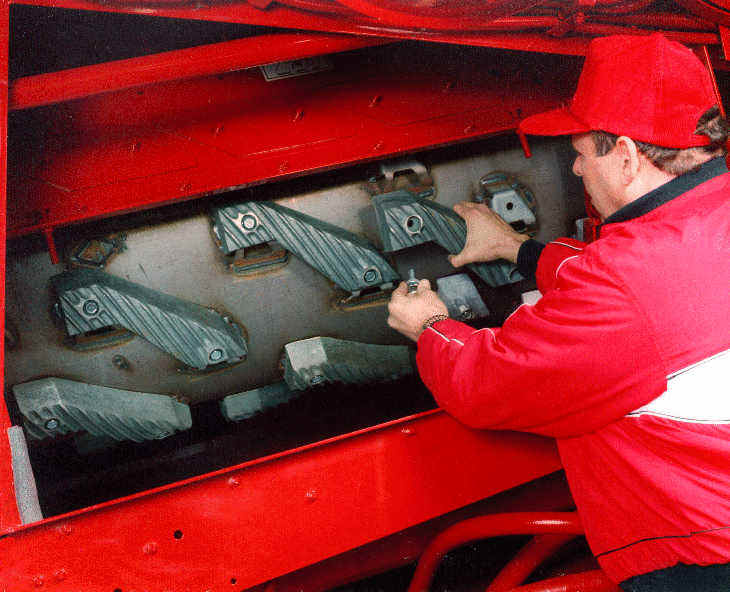

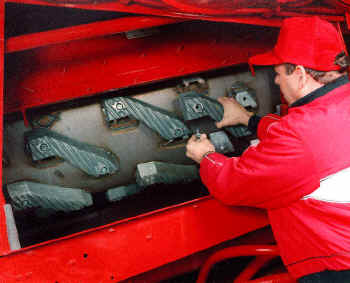

Installing Gorden Rotor Bars
Click For Larger Picture

Rochelle Rotor With Gorden Threshing and Separating Bars
Click For Larger Picture

Now Case IH Specialty Rotor Operators
Get The Best Of Both Worlds With The Exclusive

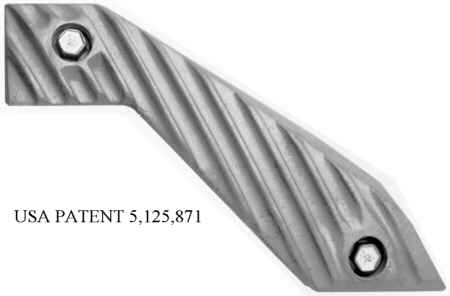

Gorden Rotor Bar


Gorden Rotor Bar

Original Threshing Bar



Now Gorden Separator Bars Are Available

Install them over your separator grates


Gorden Separator Bar
 Separator Bar


The Gorden Rotor Bars, when installed in the specialty rotor, offer these advantages:


Each Gorden Rotor Bar easily bolts in and replaces two original bars in the threshing area of the Case IH specialty rotor.

Gorden rotor Bars are factory weighed and sorted. To maintain balance, install Gorden Rotor Bars in groups of three on the 40 through 77 series rotor. Install in groups of four on the 80-88 series.

Adding more Gorden rotor Bars increases the threshing action. Up to 15 Gorden Rotor Bars can be installed on the 40 through 77 series. Twenty Gorden Rotor Bars fit on the 80-88 series rotor.  Up to 14 Gorden Separator Bars fit the 80-88 series rotor.

The Gorden Rotor Bar wedges more crop against the concave. Gorden Rotor Bars thresh more completely in the front of the rotor. Separating begins sooner with earlier threshing. Wider cleaning sieve settings are possible along with good grain samples. Sieve setting is much less critical. A wider sieve setting returns less clean grain. Fewer returns reduce kernel damage and rotor loss.

Gorden Separator Bars increase the separating capacity over the grate area and help reduce roping in tough bean crops.


Gorden Cover Plates

Click here to view information on Gorden Cover Plates



Click here to view Gorden Threshing Bar Installation Instructions

Click here to view Gorden Separator Bar Installation Instructions

Click here to view location chart for 60 - 66 Series Combines

Click here to view location chart for 80 - 88 Series Combines

Click here to download location chart pdf file (343k) for 60 - 66 Series Combines

Click here to download location chart pdf file (465k) for 80 - 88 Series Combines


Click here for complete price list, brochures and operating tips.


The Estes Disrupter

" The Estes Disrupter "

Learn More About Disrupters For Axial-Flow Combines
